Applicability

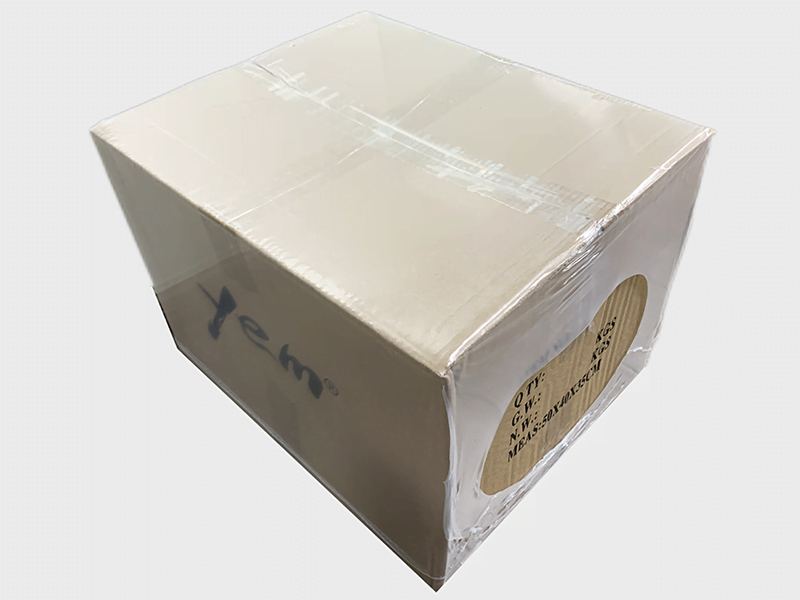

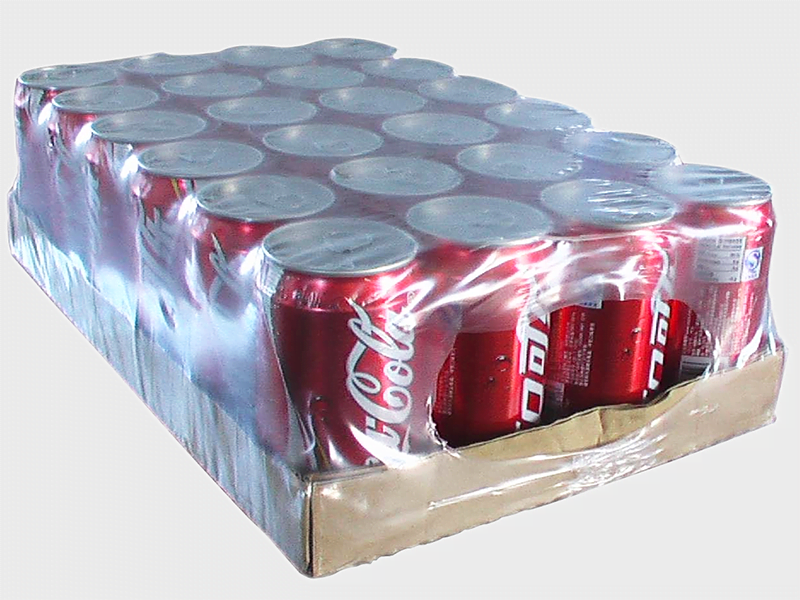

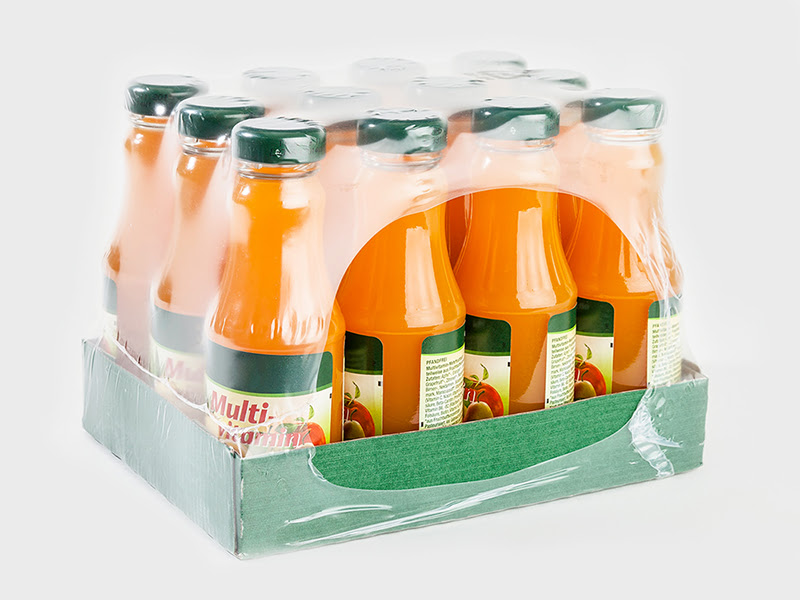

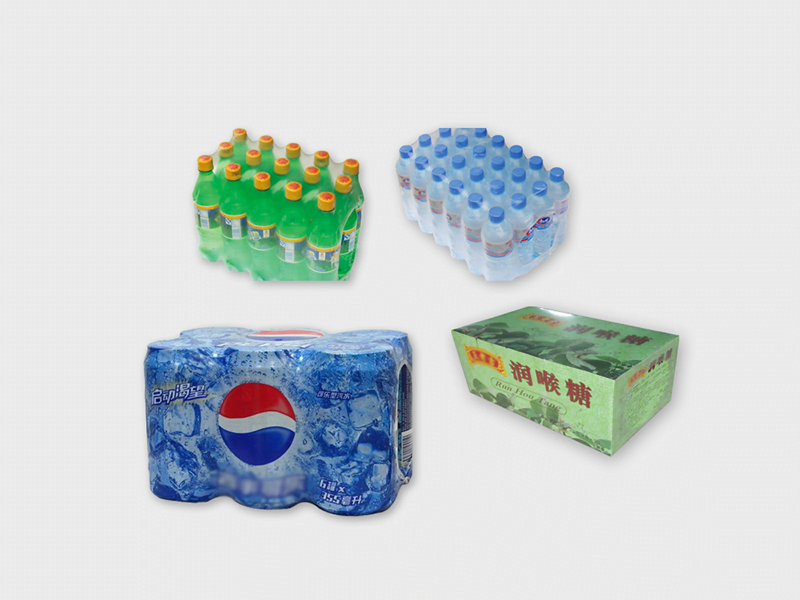

Cartons and big bottles with trays such as drinking bottles, pure waters bottles, beer bottles, etc.

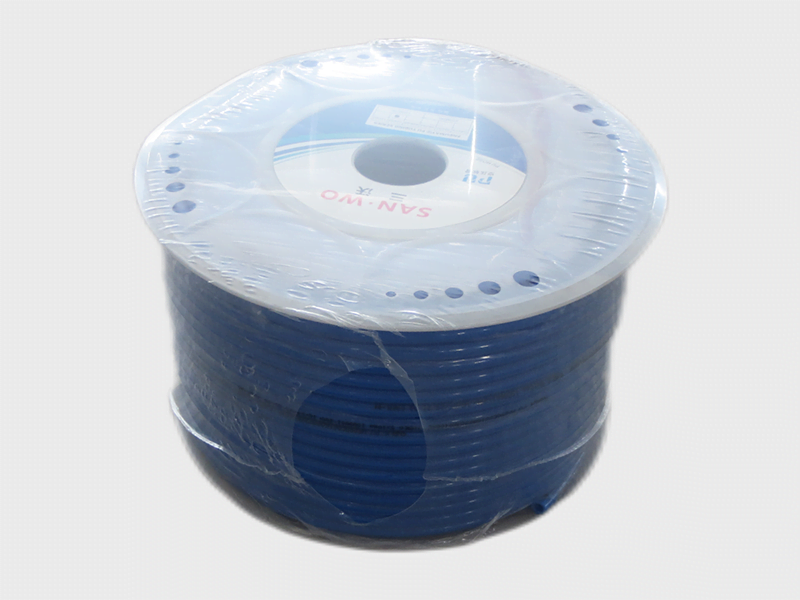

Different kinds of tapes, cable cores, cylindrical products, etc.
|
MODEL
|
RX-1000
|
|
Sleeve Sealer （Straight Line Infeed Conveyor)
|
|
Sealing Height
|
300MM
|
|
Packing Width
|
400MM
|
|
Packing Size
|
Width + Height < 520MM
|
|
Max Film Roll Size
|
530mm (Width) X 280mm (Outer Diameter)
|
|
Power Consumption
|
1.8 KW
|
|
Sealing Machine Dimensions
|
2100 X 970 X 1600 MM
|
|
Packing Capacity
|
Max. 20 Packs per Minute (Depends on Product Size)
|
|
Installed Power
|
380V/50-60HZ/3Phase
|
|
Film Thickness
|
30-100 Micron (Minimum-Maximum)
|
|
Film Type
|
PE Film
|
|
Working Height
|
780-850 MM
|
|
Air Pressure
|
0.5MPA (5 BAR)
|
|
Sealing Knife
|
Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
|
|
Sealing Knife
|
Carbon Steel / Stainless Steel
|
|
MODEL
|
SHR-8060
|
|
Oven Size
|
2000MM (L), Entrance 800(W) X 600(H) MM
|
|
Tunnel Machine Dimensions
|
3010 X 920 X 1800 MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Power Supply
|
380V/50-60HZ/3Phase
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel / Stainless Steel
|
|
Weight(Net/ Gross)
|
830KGS/ 900KGS (For Reference Only, Including Sealer and Tunnel)
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
