Applicability
Items packaged with shrink film, such as bowl noodles, milk tea, cup products, frozen products, dried noodles, fruit milk, mosquito coils, food boxes, cosmetics, cooked bottles, incense coils, etc., either individually or collectively.

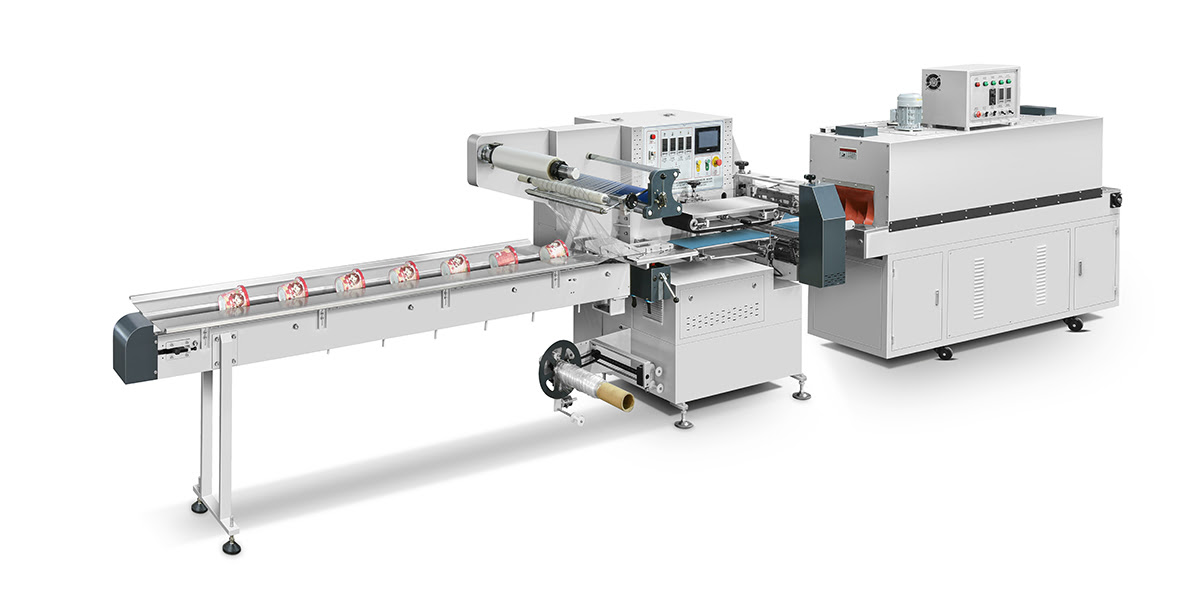

Electrostatic adherence shrink packing machine adopts non-heating center seal technology to replace heating device, the power consumption of the whole machine can be reduced by 1000W. Moreover, it can seal without waste film.
|
MODEL
|
RS-590
|
|
Sealing Type
|
High Speed Flow Type Sealing
|
|
Installed Power
|
Sealer: 220V/380V; 50-60Hz; 1Phase/3Phase
|
|
Packing Capacity
|
50-150 Packs per Minute (Depends on Product Size)
|
|
Sealing Height
|
5-35mm; 35-60mm; 60-90mm; 90-130mm
|
|
Packing Width
|
20-180MM
|
|
Packing Length
|
50-450MM
|
|
Packing Size
|
Width + Height ≤ 450MM
|
|
Film Type
|
Single Layer POF Film
|
|
Max Film Roll Size
|
590MM (Width) X 280MM (Outer Diameter)
|
|
Working Height
|
780-850 MM
|
|
Sealing Machine Dimensions
|
4930 X 1130 X 1500 MM
|
|
Sealing Machine Weight
|
775kg
|
|
MODEL
|
RT-3025S
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods/ Mesh Belt
|
|
Tunnel Oven Size
|
2000MM (L), Entrance 350(W) X 250(H) MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
2400 X 600 X 1550 MM
|
|
Tunnel Weight
|
365kg
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
