Products

Automatic High Speed Shrink Packing Machine

首页 产品中心 Automatic High Speed Shrink Packing Machine

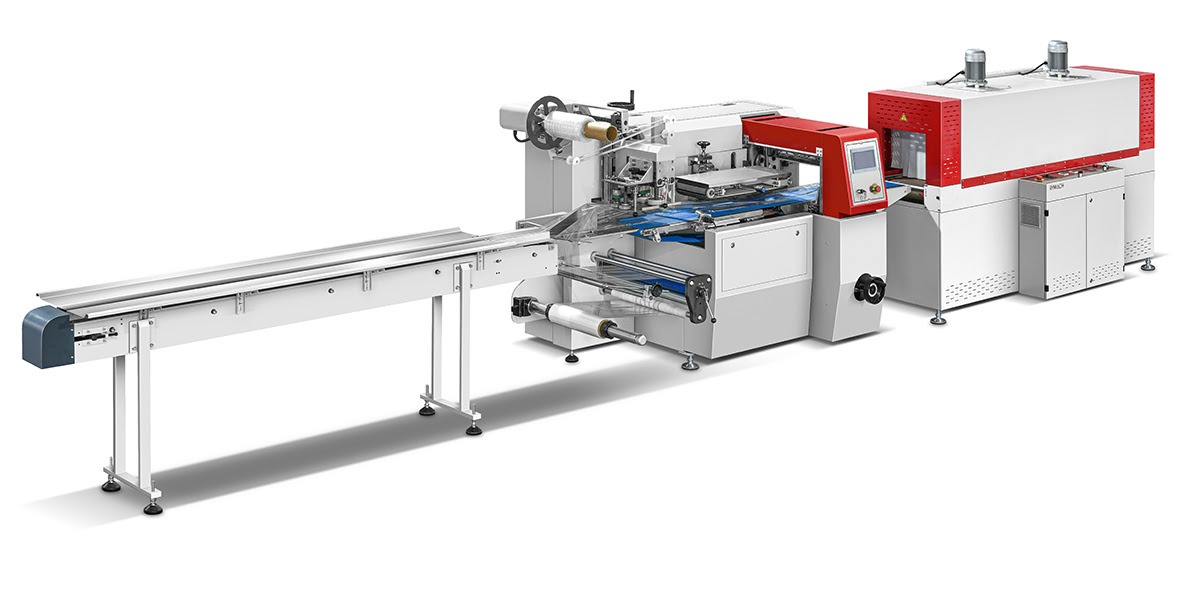

RS-590 + RT-3025S

Automatic High Speed Flow Type Heat Shrink Packing Machine

RS-590 + RT-3025S 观看视频
Product Details

Applicability



Instant noodle cup or bowel, milk cup, carton, wallpaper rolls, cosmetic bottle, filter, etc.




Electrostatic adherence shrink packing machine adopts non-heating center seal technology to replace heating device, the power consumption of the whole machine can be reduced by 1000W. Moreover, it can seal without waste film.


MODEL RSL-590
Sealing Type High Speed Flow Type Sealing
Installed Power Sealer: 220V/380V; 50-60Hz; 1Phase/3Phase
Packing Capacity 50-150 Packs per Minute (Depends on Product Size)
Sealing Height 5-35mm; 35-60mm; 60-90mm; 90-130mm
Packing Width 20-180MM
Packing Length 50-450MM
Packing Size Width + Height  450MM
Film Type Single Layer POF Film
Max Film Roll Size 590MM (Width) X 280MM (Outer Diameter)
Working Height 780-850 MM
Sealing Machine Dimensions 4930 X 1130 X 1500 MM
Sealing Machine Weight 835kg
MODEL RT-3525
Conveyor Chains with Rotating Silicon Coated Rods/ Mesh Belt
Tunnel Oven Size 2000MM (L), Entrance 350(W) X 250(H) MM
Rated Power Consumption Max. 16 KW
Working Height 780 - 850 MM
Machine Material Carbon Steel
Tunnel Machine Dimensions 2400 X 600 X 1550 MM
Tunnel Weight 355kg



Part 4  Bag Collecting Machine



The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.


Part 4  Bag Collecting Machine



The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.


样品包装
RS-590 + RT-3025S
RS-590 + RT-3025S
RS-590 + RT-3025S
RS-590 + RT-3025S
布局
